ACCO KuplexII Clevis Kupler, 5/8 in, 22600 lb, 100 Grade, Alloy Steel, Red

ITEM FEATURES:

• Kuplers act as a connection device between master link and chain on alloy chain slings
• Resembling a shackle in appearance the Kuplers provide both strength and integrity, used on all grade 80 or grade 100 alloy chain slings


  SKU:	598150023
  ID #	K-23
  Chain Size Inches	5/8
  Chain Size mm	16
  Grade	80

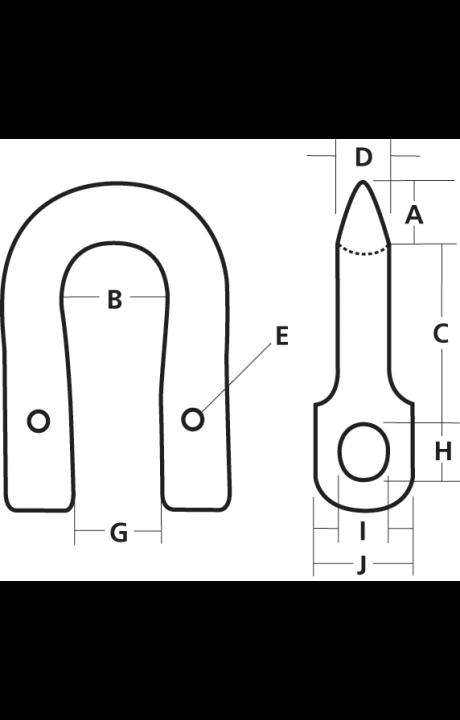

  Dim A (in.)	0.938
  Dim B (in.)	1.625
  Dim C (in.)	3.000
  Dim D (in.)	0.688
  Dim E (in.)	0.250
  Dim G (in.)	1.344
  Dim H (in.)	0.938
  Dim I (in.)	0.813
  Dim J (in.)	1.500
  Lbs. Per Ea.	2.4
  Working Load Limit (Lbs.)	18000
