Peerless V10 Sling Hook, 22600 lb Load, 100 Grade, Clevis Attachment, Alloy Steel, Powder-Coated, For Use With: Grade 80/100 5/8 in Chain Sling

ITEM FEATURES:

• Strong and durable cast latch
• 4 to 1 design factor




  SKU:	8418700
  Manufacturer Part No.	SHC16
  Chain Size Inches	5/8
  Chain Size mm	16

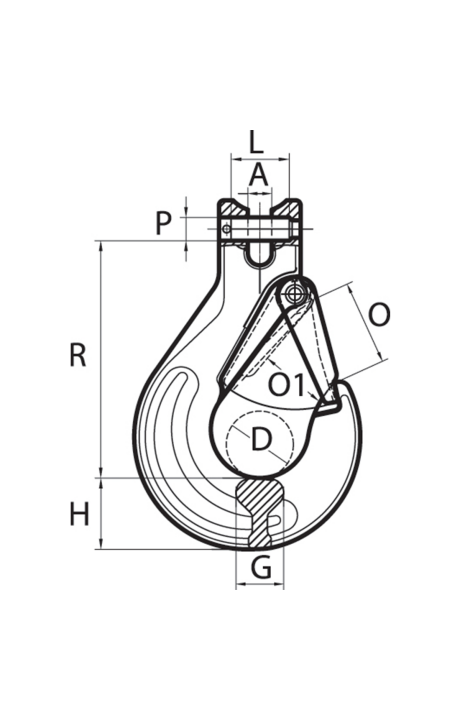

  Dim A (in.)	0.689
  Dim D (in.)	1.732
  Dim G (in.)	1.457
  Dim H (in.)	1.850
  Dim O (in.)	2.165
  Dim O1 (in.)	1.772
  Dim P x L (in.)	0.79 x 2.05
  Dim R (in.)	6.102
  Lbs. Per Ea.	7.50
  Working Load Limit (Lbs.)	22600
