Home Hose & Fittings Valves Check Valves Dixon SCVS6 Safety Check Valve, 3/4 in, Brass Body

Dixon SCVS6 Safety Check Valve, 3/4 in, Brass Body

PART DIXSCVS6
WEIGHT 1.04000
SUPPLIER Dixon
SUPPLIER PART # SCVS6

About this item

Dixon Safety Check Valve, 3/4 in Nominal, 350 psi, 250 deg F, 160 to 180 scfm, Brass Body, 3-9/16 in L

ITEM FEATURES:

  • High flow valve to provide optimum performance
  • Controls excess air flow (scfm) in only one direction

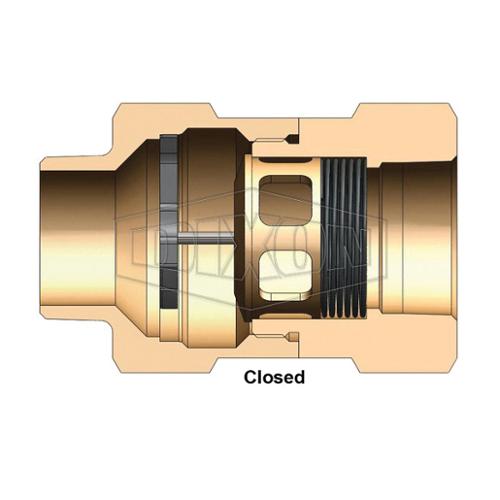

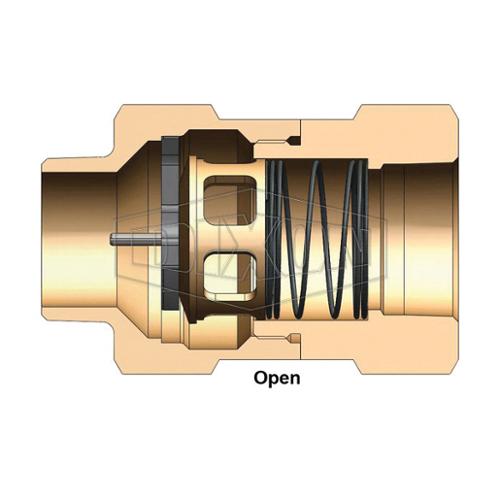

  • Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
  • Solid brass body and valve
  • Stainless steel spring and roll pin
  • Does not prevent backflow
  • Prop65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling

There are currently no resources for this product.

There are currently no specs for this product.
