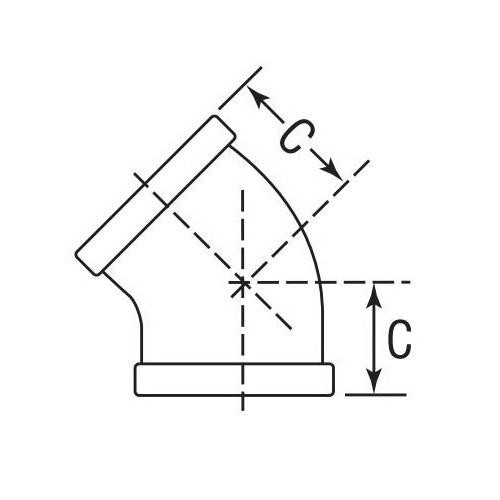

Anvil® 0311023808 FIG 1102 Standard 45 deg Pipe Elbow, 1 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic

PART AIN145MIBIG
WEIGHT 0.55000
SUPPLIER Anvil®
SUPPLIER PART # 311023808
Calculating price...
QUANTITY

About this item

Anvil® Pipe Elbow, Standard, Series: FIG 1102, Fitting/Connector Type: 45 deg Elbow, 1 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar).

ASME B16.3/B1.20.1|ASTM A197|cULus Listed|FM Approved|NSF/ANSI 61|ASME B16.14/B16.4/B1.20.1|ASTM A153/A197|WW P521

There are currently no resources for this product.

Domestic/Import Domestic
End Style FNPT
Finish Galvanized
Fitting/Connector Type 45 deg Elbow
Material Malleable Iron
Nominal Size 1 in
Pressure Class 150 lb
Pressure Rating 300 psi
Schedule Rating SCH 40/STD
Series FIG 1102
Temperature Rating -20 to 150 deg F
Type Standard
Brand Anvil®
Country of Origin US
