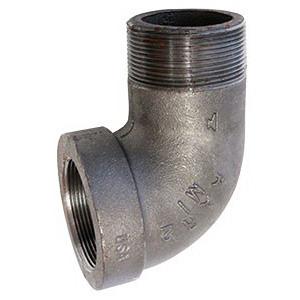

Anvil® 0310508403 FIG 1170 Street Elbow, 1-1/4 in Nominal, MNPT x FNPT End Style, 300 lb, Malleable Iron, Black Oxide, Domestic

PART PIP11490STXMIBD
WEIGHT 1.60000
SUPPLIER Anvil®
SUPPLIER PART # 0310508403
Calculating price...
QUANTITY

About this item

Anvil® Street Elbow, Series: FIG 1170, 90 deg Elbow Fitting/Connector, 1-1/4 in Nominal, MNPT x FNPT End Style, SCH 80/XS, SCH 80/XH Schedule, 300 lb Pressure Class, 1500 psi Pressure, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic/Import: Domestic

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar) .

ASME B16.3|cULus Listed|FM Approved|NSF/ANSI 61|ASME B16.14/B16.4/B1.20.1|ANSI B1.20.1|FM Approved|NSF 61-G|UL/ULC Listed|WW P521
Specification Sheet
Specification Sheet
Domestic/Import Domestic
End Style MNPT x FNPT
Finish Black Oxide
Fitting/Connector Type 90 deg Elbow
Material Malleable Iron
Nominal Size 1-1/4 in
Pressure Class 300 lb
Pressure Rating 1500 psi
Schedule Rating SCH 80/XS, SCH 80/XH
Series FIG 1170
Temperature Rating -20 to 150 deg F
Brand Anvil®
Country of Origin US
