DeWALT Screw-Bolt+ Screw Anchor, High Performance, 5/8 in Diameter, 6 in Overall Length, Hex Head Drive, Steel, 2-1/2 in Minimum Embedment Depth, 5/8 in Drill, Zinc Plated, Applicable Materials: Normal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick, 15/16 in Head, 3-1/2 in Maximum Work Thickness, 10615/11630/13425/16445/17170 lb Shear Strength, 5735/6285/7255/8885 lb Tensile Strength

ITEM FEATURES:

• Designed for standard ANSI tolerance drill bits
• Tough threads for tapping high strength concrete
• Can be installed closer to the edge than traditional expansion anchors

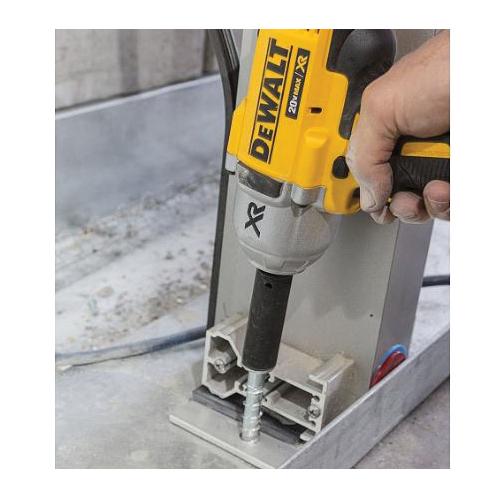

• Fast installation with powered impact wrench
• 1-piece, finished head design
• Patented thread design offers low installation torque
• Ratchet teeth on underside of hex washer head lock against the fixture
• Fully removable and re-installable in same hole
• Diameter, length and identifying marking stamped on head of each anchor
• 10615/11630/13425/16445/17170 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength
• 5735/6285/7255/8885/8885 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete tensile strength
