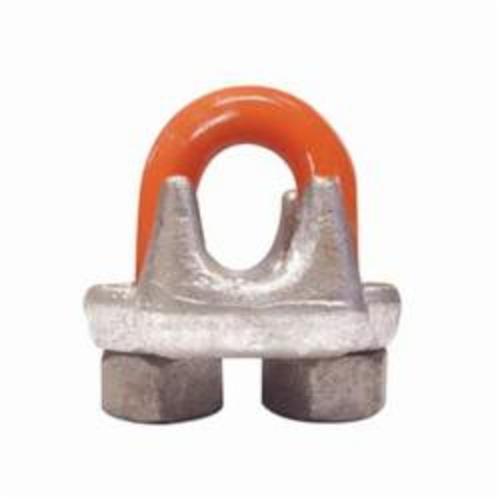

CM Wire Rope Clip, 1/2 in Dia Cable, Forged Steel, 3 Clips Minimum, 11-1/2 in Rope Turn Back, 65 ft-lb Minimum, Galvanized

ITEM FEATURES:

• Wire rope clips are used to secure the end of wire rope when forming a loop, i.e., for wire rope turn-back
• Each configuration is equally strong and effective, but care must be exercised for proper installation of single saddle clips
• Drop forged base
• 1-7/8 in inside width
• 2-5/16 in length
• 1/2 in thread Dia
• 1 in thread length
• Thread size 13
• 1.19 in center to center

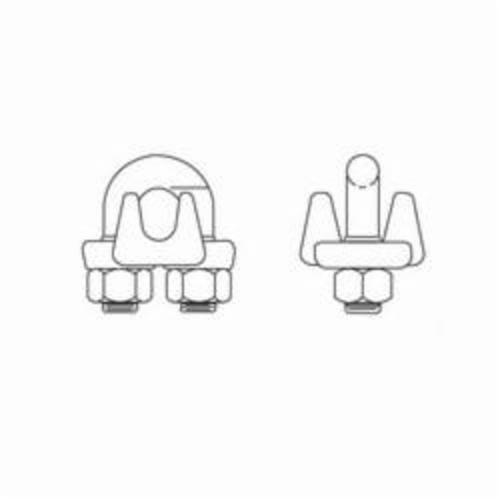

• Clips are available in two configurations: mid grip (double saddle) and single saddle
