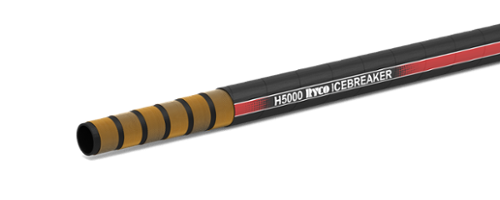

Very high pressure hydraulic oil lines in application where low temperature environmental conditions exist. Constant pressure (Isobaric) 350 bar / 5100 psi in all sizes. Small bend radius is an advantage in installations.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Four (-12 to -20 size) and six (-32 size) alternating layers of spiralled high tensile steel wire.

COVER: Black, oil and abrasion resistant synthetic rubber.
Meets or Exceeds the Performance Requirements of:
EN 856 Type R13, ISO 18752-CC, SAE100R13.

FEATURES: Low temperature hose (-60°C/-76°F). Constant pressure 350 bar / 5100 psi in all sizes for easy system design and hose selection. Small bend radius is an advantage in installations.

TEMPERATURE RANGE: -60°C to +100°C (-76°F to +212°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
