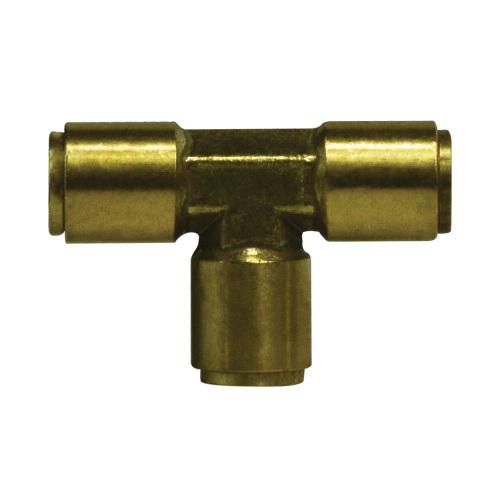

Tube Union Tee, Fitting/Connector Type: Tee, 3/4 in Nominal, Push-In, 150 psi, -40 to 200 deg F, Brass

ITEM FEATURES:

• Fast assembly- no tools required simply push tubing in saves up to 75% of assembly time compared to standard air compression fittings
• Fast disconnect- hold the collet collar with two fingers and pull out tube
• Reusable - can be connected and disconnected several times
• Reliable sealing - using recommended tubing, full sealing is guaranteed
• Versatility - Buna-N O-ring standard Viton and others available per request secure tube retention pulling on tubing only serves to tighten the connection
• Pre applied PTFE based pipe sealant on all male pipe threads, saving customer additional labor
• Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
• DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
• The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
• All male threads have a pre applied PTFE based pipe sealant to provide for easy assembly and leak proof seal
