ExpanPin SP-250-1000/B Standard Duty Slotted SP-250-1000/B, 1/4 in Dia Nominal, 1 in OAL, High Carbon Steel, Clear Zinc Plated, 1070-1080 Grade

PART FAS82-16X100
WEIGHT 0.01000
SUPPLIER ExpanPin
SUPPLIER PART # SP-250-1000/B
Calculating price...
QUANTITY

About this item

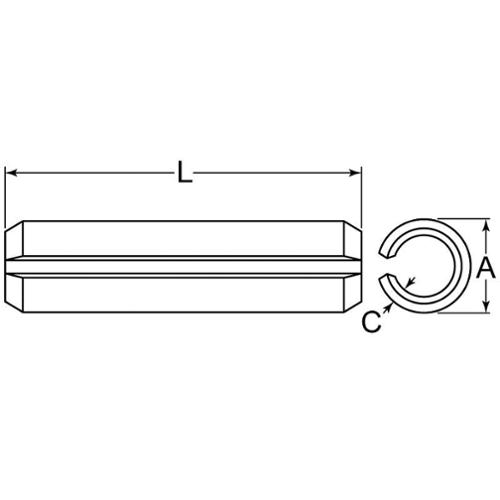

ExpanPin Spring Pin, Standard Duty Slotted, 1/4 in Diameter Nominal, 1 in Overall Length, High Carbon Steel, Clear Zinc Plated, 1070-1080 Grade, 0.048 in Wall Thickness, 0.258 to 0.264 in Actual Diameter, HV 458-560 Hardness, 7050 lb Shear Strength

Rolled pins are hollow, cylindrical tube-style press fit fasteners with chamfered ends. They have been around a long time, and as a result there are an abundance of designs, materials, and finishes with wide stock availability. Rolled pins are used as locking devices, positioning points, anti-chafing surfaces, shafts, or sleeves for wiring. Usage is limited only by your imagination and technological capabilities. Slotted pins are also known as roll pins or spring pins. Coiled rolled pins are sometimes referred to as spiral pins.

ASME B18.8.2|RoHS Compliant|PROP65: Warning: This product can potentially expose you to chemicals including lead, nickel and chromium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Video Link
Video Link
Actual Diameter 0.258 to 0.264 in
Finish Clear Zinc Plated
Grade 1070-1080
Hardness HV 458-560
Material High Carbon Steel
Nominal Diameter 1/4 in
Overall Length 1 in
Shear Strength 7050 lb
Type Standard Duty Slotted
Wall Thickness 0.048 in
Brand ExpanPin
Country of Origin US
